Home > Shutters > Shutter: Pine Louver with Cross Rail (Style A)

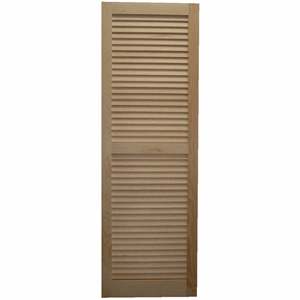

Shutter: Pine Louver with Cross Rail (Style A)
Louver Shutter with Cross Rail
Clear unfinished (not treated) Pine
Availability subject to stock in inventory
Price is per pair.
Louver slats will move with the change of humidity. This is not a defect.
Wood is a natural material and if not properly maintained, will deteriorate and rot. Wood shutters must be primed and painted on ALL sides with a minimum of 2 coats of paint.
Pine Stock Specifications - subject to change without notice
Stiles & Top Rail: 2" (Face dimension approx 1-3/4")
Cross Rail: 2-3/16" Face
Bottom Rail: 3-3/4" Face
Thickness: 1-1/16"
Slat Size: 1-3/16" (1" visible from exterior)
Note: 79" shutters may ship as 80" tall
For non-operable applications fix each corner with stainless steel screws to your building.
If using shutter hinges for decorative purposes then the non-hinged corners should be screwed to your building.
Wood is a natural material and if not properly maintained, will deteriorate and rot.
Wood shutters must be primed and painted on ALL sides with a minimum of 2 coats of paint.
Wood shutters should not be installed flush to a surface. If you are not using shutter hinges then install the shutter with an 1/8" gap between the wall and the shutter to allow air to circulate.
Measuring For Shutters
Always measure in inches
A — First, measure the width of the opening between casings on the outside of your window. Take that measurement and divide by two. This will be the width of the shutter you will need.
B — Next, measure the height from the top of the sill to the header casing. Specify this as the height of your shutter.
PLEASE BE SURE TO DOUBLE CHECK YOUR MEASUREMENTS
AKZ Bullet Acorn Catch for wood shutters. Sold individually.
|
2-1/4" Offset with a 4-1/2" reveal. Sold as a set of 2 pair of hinges.
|
1-1/4" Offset 2-1/2" Reveal. Each set contains 2 pair of hinges.
|
Black Aluminum Shutter Holdback for frame construction. Sold in pairs.
|
3" x 4" open. Butt Hinge Style sold in pairs. Designed with a curve offset to throw shutter clear of window.
| |
|
|
|
