Modern 7" Plate Non-Keyed - Brass Tubular

<< Previous in Sideplate Locksets Next in Sideplate Locksets >>

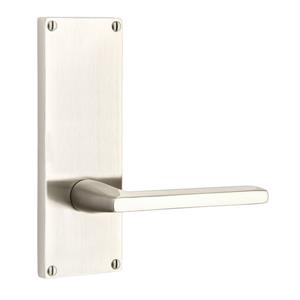

Shown with Helios Lever

Product Options

Function:

Personalization

* denotes required field

Select Finish*
Emtek Levers and Knobs*
Handing for Levers Only
Backset (2-3/8" is standard, specify 2-3/4" if required)*
Modern 7" Non-Keyed Plate - Brass Tubular

  • Brass Knob & Lever (choose Right Hand or Left Hand) Options
  • Standard 2-3/8" square corner backset, 2-3/8" round corner or optional 2-3/4" backset latch in round or square corners.
  • Standard 2-1/8" Door Prep
8111  Passage - Both knobs/levers free
8211  Privacy - Both knobs lock or unlock by push button inside. Outside knob unlocks though emergency key hole.
8011  Dummy (no operation) - For doors where only a pull is required. (Packaged in Pairs-2 Plates)

Determining handing for door hardware is different than determining handing for carpentry (ordering and hanging doors). If you follow the standard carpentry rules for handing door hardware, instead of following the diagram below, there is good chance you may end up with a lock that is handed incorrectly. Please refer to the diagram below and if you have any questions, call Customer Service at (800) 518-0781.


HANDING OF DOOR IS ALWAYS DETERMINED FROM THE OUTSIDE
  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a closet door is the room or hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
