ADA Outswing Door Sill 2005V

<< Previous in Sills Next in Sills >>

Product Options

For Door Size:
ADA Outswing Door Sill

5" wide; 1/2" tall

Allow 3/8" clearance.

Latching Panic thresholds are designed to work in conjunction with surface applied vertical rod exit devices. They are also used to provide a door stop and seal at the bottom of the door.

Made from non rusting extruded aluminum. Used for double 36" wide outswing doors.

Allow 3/8" bottom door clearance.

Field sizable, non-handed.  Packaged with installation screws.

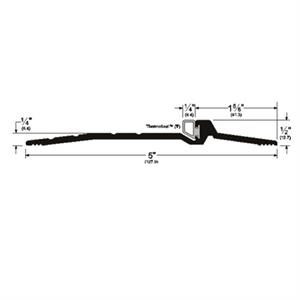

Specifications for 2005AT Door Threshold

  • Height: 1/2"
  • Width: 5"
  • Weather Seal: Black Thermo Seal Insert
  • Material: Aluminum
  • Finish: Clear Powder Coated or Bronze Powder Coated
  • Stock for Door Widths: 36" and Double 36" (73")
  • ADA Compliant

ADA Compliant Handicap Logo

Barrier-Free


Access compliant by having installed height differences not over 1/2 with allowable edge and slope conditions.
These products meet the requirements of ADAAG-1998 (Amended), ICC/ANSI A117.1-2003

Fire Rated - UL10C - Positive Pressure


This products hasbeen tested to meet the requirements of UL 10B and UL 10C, Fire Tests of Door Assemblies, UBC 7-2 Fire Tests of Door Assemblies Part 1-1997, and NFPA 252 with the neutral pressure plane regulated at 40".

Special order sizes - contact our office for a quote

Images are for representational purposes only - item may vary
